TSC TDM-20
Mobile label printer for daily use
TSC TDM-20
Mobile label printer for daily use
from
£337.69
(recommended retail price)- Mobile barcode label printer with high connectivity
- Powerful 1,130 mAh battery, battery management system
- Integrated self-diagnostic tool TPH Care
- Supports pre-installed OPOS drivers
- Large selection of optional accessories
1314
Product detail sub menu
Description
Description

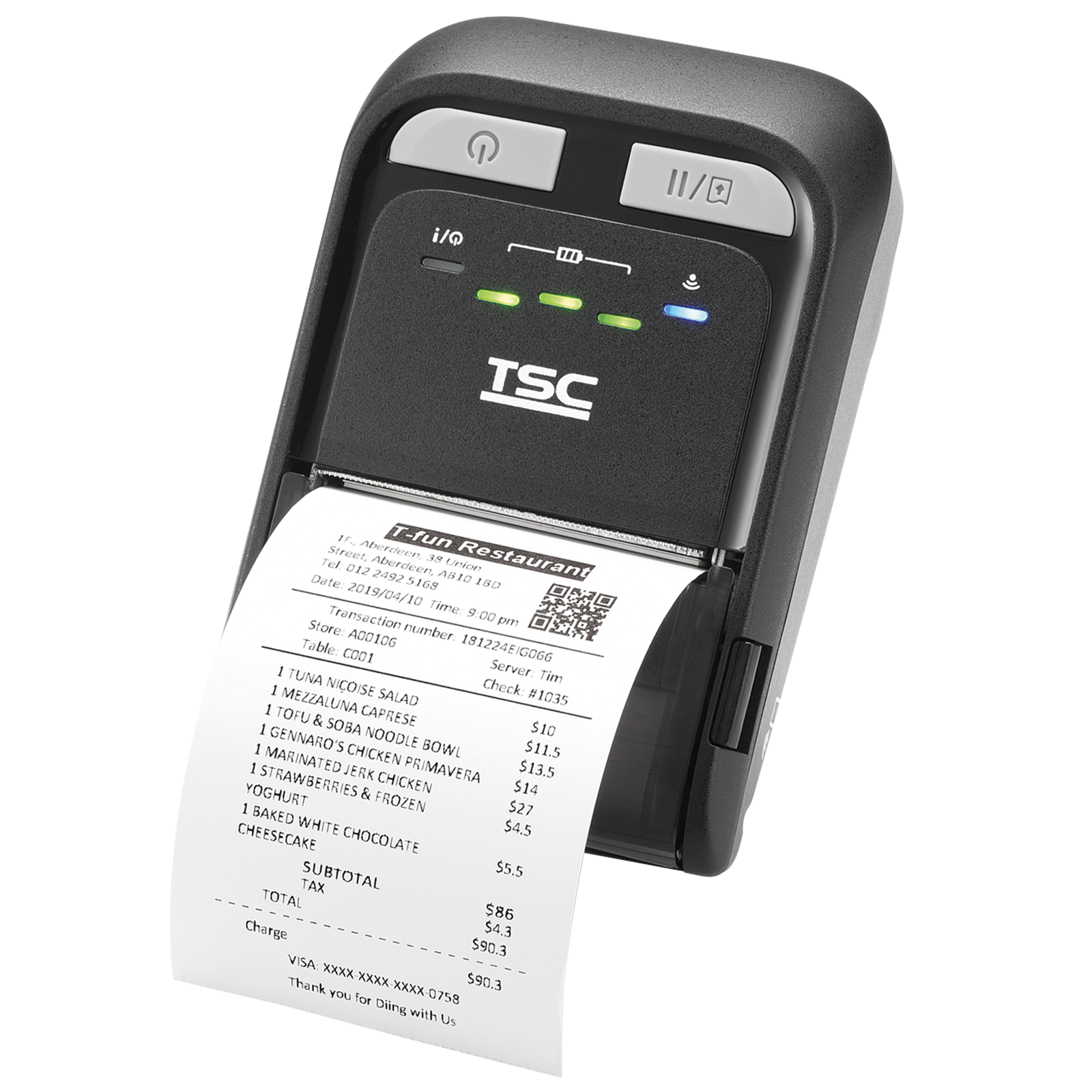

The TSC TDM-20 is a mobile barcode label printer for daily use in environments in which various platforms are used, and a high degree of connectivity is required. This includes warehouse, retail, mPOS and transportation.
The TDM-20 creates labels and receipts quickly, up to 102 mm/sec., with a resolution of up to 203 dpi. Its maximum print width is 48 mm. The label printer is equipped with three LEDs for battery capacity, an LED for the printer status and one for the wireless status. A battery management system and the powerful 1,130 mAh battery ensure maximum performance, while the self-diagnostic tool TPH Care shows the current status of the print head in real time.
To ensure particularly high connectivity, the label printer features the interfaces USB 2.0 and MFI Bluetooth 5.0 or USB 2.0, WLAN and Bluetooth 4.2. Plus, it supports pre-installed OPOS drivers for POS applications, ESC/POS languages, as well as iOS and Android apps – thus, mobile configuration and web printing are also possible.
The design of the TDM-20 is very robust and only as big as the palm of your hand. It is impact-resistant from up to 1.8 meters (even up to 2.5 meters with the optional protective case) and is protected again dust and water, according to IP54 standards.
Additionally, TSC offers a broad range of extended software development kits (SDKs), printer languages and optional accessories – including a shoulder strap, a 4-slot battery charger, a vehicle mount kit and much more.
To ensure particularly high connectivity, the label printer features the interfaces USB 2.0 and MFI Bluetooth 5.0 or USB 2.0, WLAN and Bluetooth 4.2. Plus, it supports pre-installed OPOS drivers for POS applications, ESC/POS languages, as well as iOS and Android apps – thus, mobile configuration and web printing are also possible.
The design of the TDM-20 is very robust and only as big as the palm of your hand. It is impact-resistant from up to 1.8 meters (even up to 2.5 meters with the optional protective case) and is protected again dust and water, according to IP54 standards.
Additionally, TSC offers a broad range of extended software development kits (SDKs), printer languages and optional accessories – including a shoulder strap, a 4-slot battery charger, a vehicle mount kit and much more.
All versions:
TSC TDM-20, 8 dots/mm (203 dpi), USB, BT, NFC
(tsctdm20 – 99-082A001-0002)
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 58 mm, print width (max.): 48 mm, roll diameter (max.): 40mm, speed (max.): 102 mm/s, USB, Bluetooth, NFC, RAM: 32 MB, Flash: 16 MB, label sensor, incl.: power supply unit, power cable, belt clip, battery, QSG£383.55
£383.55
24 months warranty
TSC TDM-20, 8 dots/mm (203 dpi), RTC, USB, BT (iOS), NFC
(tsctdm20-3 – 99-082A102-0002)
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 58 mm, print width (max.): 48 mm, roll diameter (max.): 40mm, speed (max.): 102 mm/s, USB, Bluetooth (iOS), NFC, RAM: 32 MB, Flash: 16 MB, real time clock, label sensor, incl.: power supply unit, power cable, belt clip, battery, QSG£337.69
£337.69
24 months warranty
TSC TDM-20, 8 dots/mm (203 dpi), RTC, USB, BT, Wi-Fi, NFC
(tsctdm20-2 – 99-082A102-1002)
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 58 mm, print width (max.): 48 mm, roll diameter (max.): 40mm, speed (max.): 102 mm/s, USB, Bluetooth, Wi-Fi (802.11a/b/g/n), NFC, RAM: 32 MB, Flash: 16 MB, real time clock, label sensor, incl.: power supply unit, power cable, belt clip, battery, QSG£412.73
£412.73
24 months warranty
Data sheet & more
Available downloads:
Datasheet
