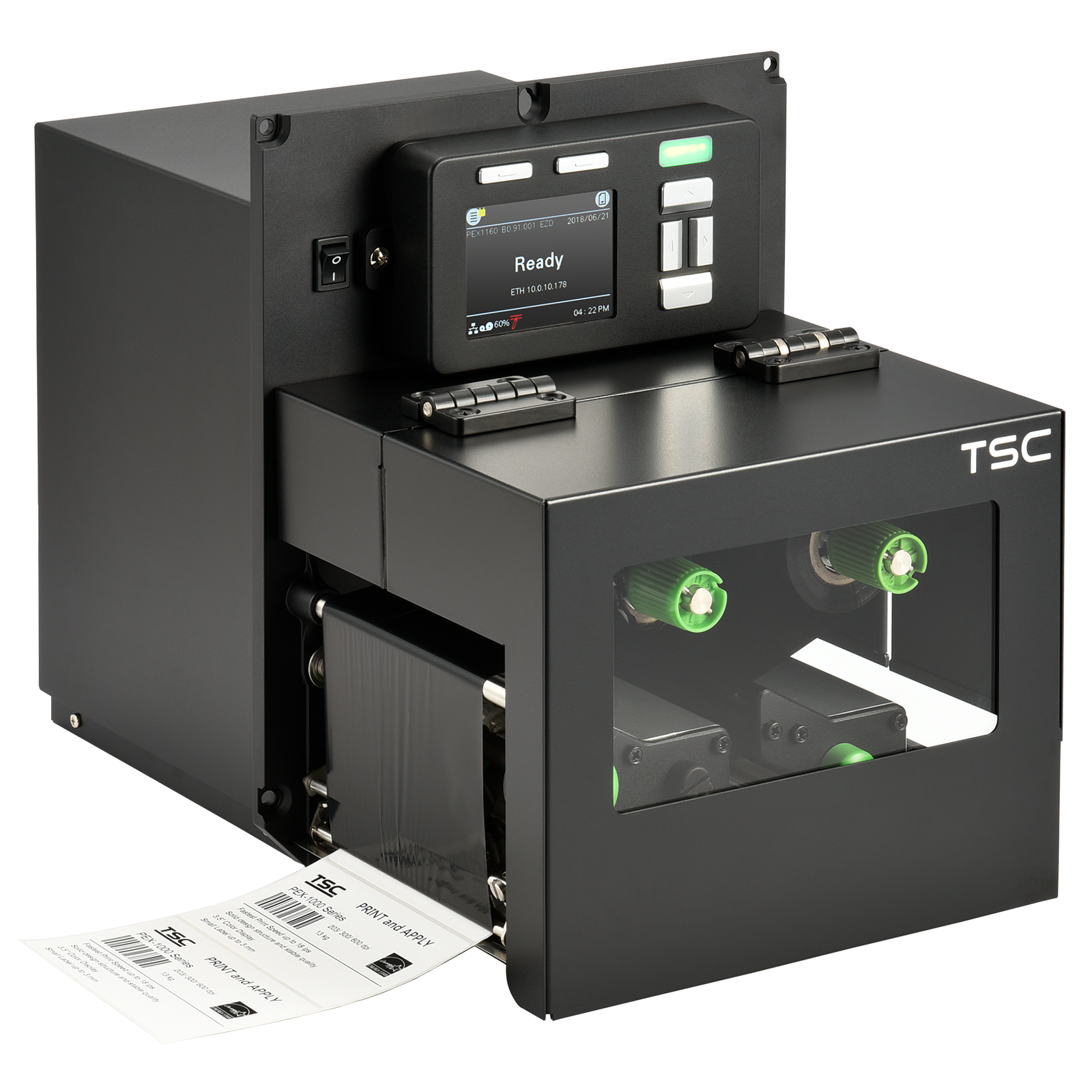

TSC PEX-1001 Series
Industrial level print module
s
TSC PEX-1001 Series
Industrial level print module
s
from

£3,350.72

(recommended retail price)
Log in to see prices
  • Innovative print module with precise high-performance electronics
  • Max. print speed: 457 mm/sec. at 203 dpi (PEX-1121/PEX-1221)
  • Max. print resolution: pinpoint sharp 600 dpi (PEX-1161/PEX-1261)
  • High-precision label detection up to a height of 5 mm
1311

Description

The PEX-1001 Series combines precise printing mechanisms and powerful high-performance electronics with robust die-cast aluminum housing - ideal for the demanding areas of industry, production, transportation & logistics or, even healthcare. The PEX-1121 and PEX-1221 models impress with very high print speeds: 457 mm/sec. at a resolution of 203 dpi. The PEX-1131 and PEX-1231 models, which are up to 356 mm/sec. at 300 dpi, offer a well-balanced relationship between speed and resolution. With 600 dpi at 152 mm/sec., the PEX-1161 and PEX-1261 models achieve the highest print resolution. All models process labels up to 104 mm wide, using thermal transfer or direct thermal printing, as needed.
The precise sensors even detect up to 5 mm high. A 32-bit RISC CPU, 512 MB SDRAM, 512 MB flash and USB slot for optionally usable device memory (FAT32) are part of the equipment, as well as a 3.5" TFT touch display and a control panel. The interface selection leaves nothing to be desired: USB 2.0, a USB host, RS-232, Ethernet and GPIO (DB15F), as well as an optional combination module of Bluetooth 4.2 and Wi-Fi 802.11ac. The PEX-1001 print modules may also be turned into their own networks via »SOTI Connect« and the »TSC Console«.
Variants

Availability

TSC PEX-1221, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet
Topseller

(tscpex1221 – PEX-1221-A001-0002)

label printer (Print Engine), right hand version, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£3,350.72

This article will be discontinued by 30/06/2025

£3,350.72

Topseller
In stock 1
24 months warranty
TSC PEX-1121, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

(tscpex1121 – PEX-1121-A001-0002)

label printer (Print Engine), left hand version, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£3,350.72

This article will be discontinued by 30/06/2025

£3,350.72

In stock 2
24 months warranty
TSC PEX-1121, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

(tscpex1121uk – PEX-1121-A001-0003)

label printer (Print Engine), left hand version, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), QSG

£3,350.72

This article will be discontinued by 30/06/2025

£3,350.72

In stock 0
24 months warranty
TSC PEX-1121, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, BT, Ethernet, Wi-Fi

(tscpex1121-2 – PEX-1121-A001-0102)

label printer (Print Engine), left hand version, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Bluetooth, Ethernet, Wi-Fi (802.11ac), Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£3,767.49

This article will be discontinued by 30/06/2025

£3,767.49

In stock 0
24 months warranty
TSC PEX-1121, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, BT, Ethernet, Wi-Fi

(tscpex1121-2uk – PEX-1121-A001-0103)

label printer (Print Engine), left hand version, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Bluetooth, Ethernet, Wi-Fi (802.11ac), Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), QSG

£3,767.49

This article will be discontinued by 30/06/2025

£3,767.49

In stock 0
24 months warranty
TSC PEX-1131, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

(tscpex1131 – PEX-1131-A001-0002)

label printer (Print Engine), left hand version, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£3,445.63

This article will be discontinued by 30/06/2025

£3,445.63

In stock 2
24 months warranty
TSC PEX-1131, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

(tscpex1131uk – PEX-1131-A001-0003)

label printer (Print Engine), left hand version, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), QSG

£3,445.63

This article will be discontinued by 30/06/2025

£3,445.63

In stock 0
24 months warranty
TSC PEX-1131, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, LPT, BT, Ethernet, Wi-Fi

(tscpex1131-2 – PEX-1131-A001-0102)

label printer (Print Engine), left hand version, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Bluetooth, Ethernet, Wi-Fi (802.11ac), Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£3,899.54

This article will be discontinued by 30/06/2025

£3,899.54

In stock 0
24 months warranty
TSC PEX-1131, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, LPT, BT, Ethernet, Wi-Fi

(tscpex1131-2uk – PEX-1131-A001-0103)

label printer (Print Engine), left hand version, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Bluetooth, Ethernet, Wi-Fi (802.11ac), Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (UK), QSG

£3,899.54

This article will be discontinued by 30/06/2025

£3,899.54

In stock 0
24 months warranty
TSC PEX-1161, 24 dots/mm (600 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

(tscpex1161 – PEX-1161-A001-0002)

label printer (Print Engine), left hand version, thermal transfer, resolution: 24 dots/mm (600 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 152 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£4,530.90

This article will be discontinued by 30/06/2025

£4,530.90

In stock 0
24 months warranty
TSC PEX-1231, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

(tscpex1231 – PEX-1231-A001-0002)

label printer (Print Engine), right hand version, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 356 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£3,445.63

This article will be discontinued by 30/06/2025

£3,445.63

In stock 2
24 months warranty
TSC PEX-1261, 24 dots/mm (600 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet

(tscpex1261 – PEX-1261-A001-0002)

label printer (Print Engine), right hand version, thermal transfer, resolution: 24 dots/mm (600 dpi), media width (max.): 114 mm, print width (max.): 104 mm, speed (max.): 152 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display, real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG

£4,530.90

This article will be discontinued by 30/06/2025

£4,530.90

In stock 0
24 months warranty

Data sheet & more

Offers and indicated delivery times are not binding and only valid for resellers. Prices are in GBP, exclusive of VAT and subject to change. Errors excepted.

* The discount refers to the original sales price.

* The reduced price is only valid for current stock, provided that it is available.
