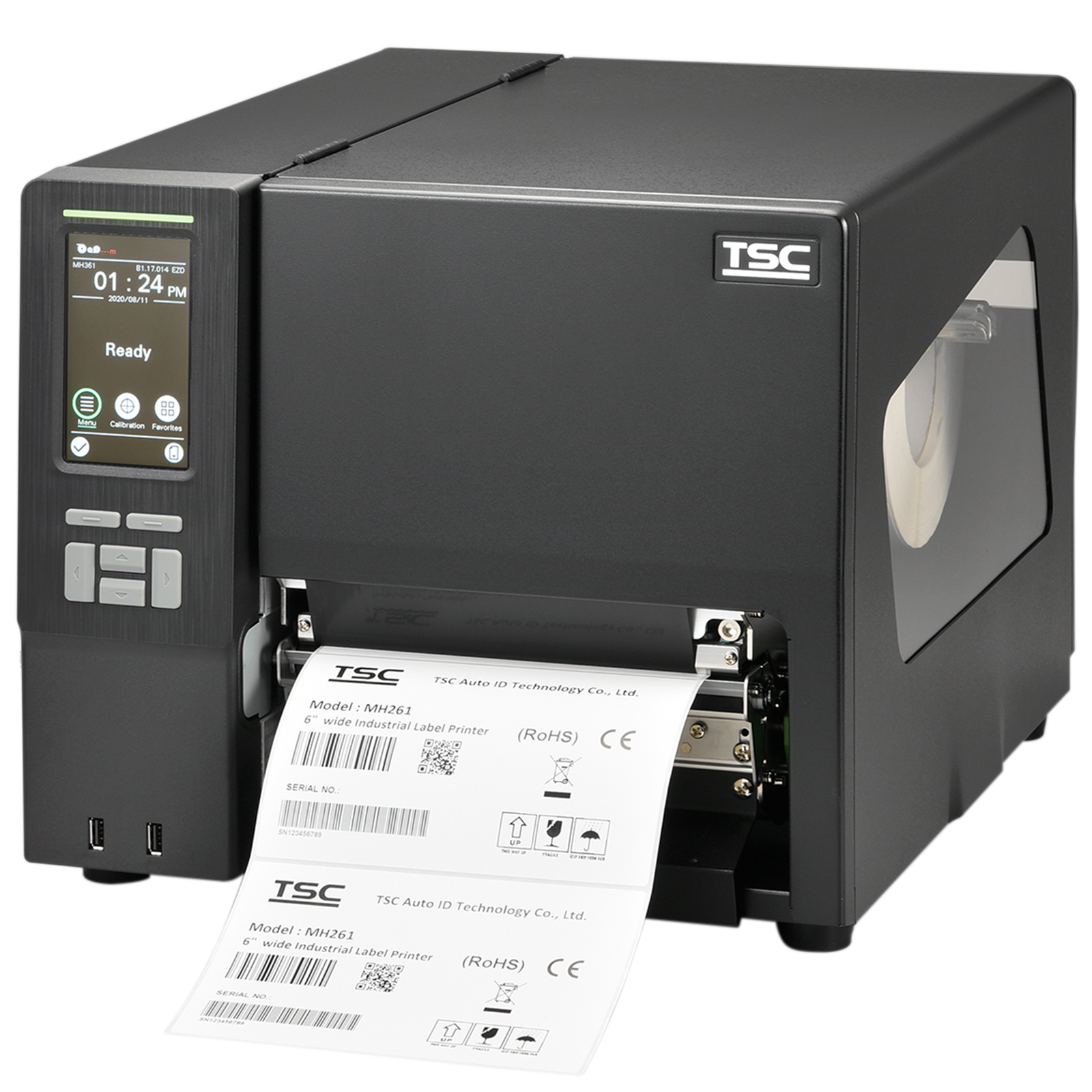

TSC MH261 Series
For complex industrial label printing
TSC MH261 Series
For complex industrial label printing
from
£2,195.13
(recommended retail price)- Full-featured thermal label printers for the industry
- Create labels up to 168 mm wide
- Max. print speed: 305 mm/sec. at 203 dpi
- 4.3" colour touch display and 6 operating keys
- USB 2.0, USB host, RS-232, parallel and Ethernet; optional combination module (BT and Wi-Fi)
1304
Description
Description
The full-featured TSC MH261 Series of industrial label printers are ideal for manufacturing, transportation & logistics or product tracking applications in healthcare. They produce labels up to 168 mm wide using either thermal transfer or direct thermal printing, with a maximum print speed of approximately 305 mm/sec. and a print resolution of 203 dpi. For easy handling, a durable 4.3" colour touch display and a control panel with 6 operating keys are available.
To withstand the sometimes harsh working conditions of the industry, the MH261 Series is equipped with robust aluminum injection-molded housing including a metal cover and large viewing window - which also ensures easy maintenance. The powerful interior features include a 32-bit RISC CPU, 256 MB SDRAM and 512 MB flash, as well as a self-checking TPH maintenance mechanism and various sensors, such as for label gaps or black mark. The interface selection includes high-speed USB 2.0, a USB host, RS-232, parallel and Ethernet. Plus, the MH261 Series may be optionally expanded with a combination module of Bluetooth 4.2 and Wi-Fi 802.11ac.
All versions:
TSC MH261T, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet
(tsc261t – MH261T-A001-0302)
label printer, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 172.7mm, print width (max.): 168 mm, roll diameter (max.): 203mm, speed (max.): 305 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 256 MB, Flash: 512 MB, display (touch screen), real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG£2,195.13
£2,195.13
24 months warranty
TSC MH361T, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet
(tsc361t – MH361T-A001-0302)
label printer, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 172.7mm, print width (max.): 168 mm, roll diameter (max.): 203mm, speed (max.): 254 mm/s, USB, USB Host, RS232, parallel, Ethernet, Micro SD-Slot, RAM: 256 MB, Flash: 512 MB, display (touch screen), real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG£2,605.16
£2,605.16
24 months warranty
Data sheet & more
Available downloads:
Datasheet
