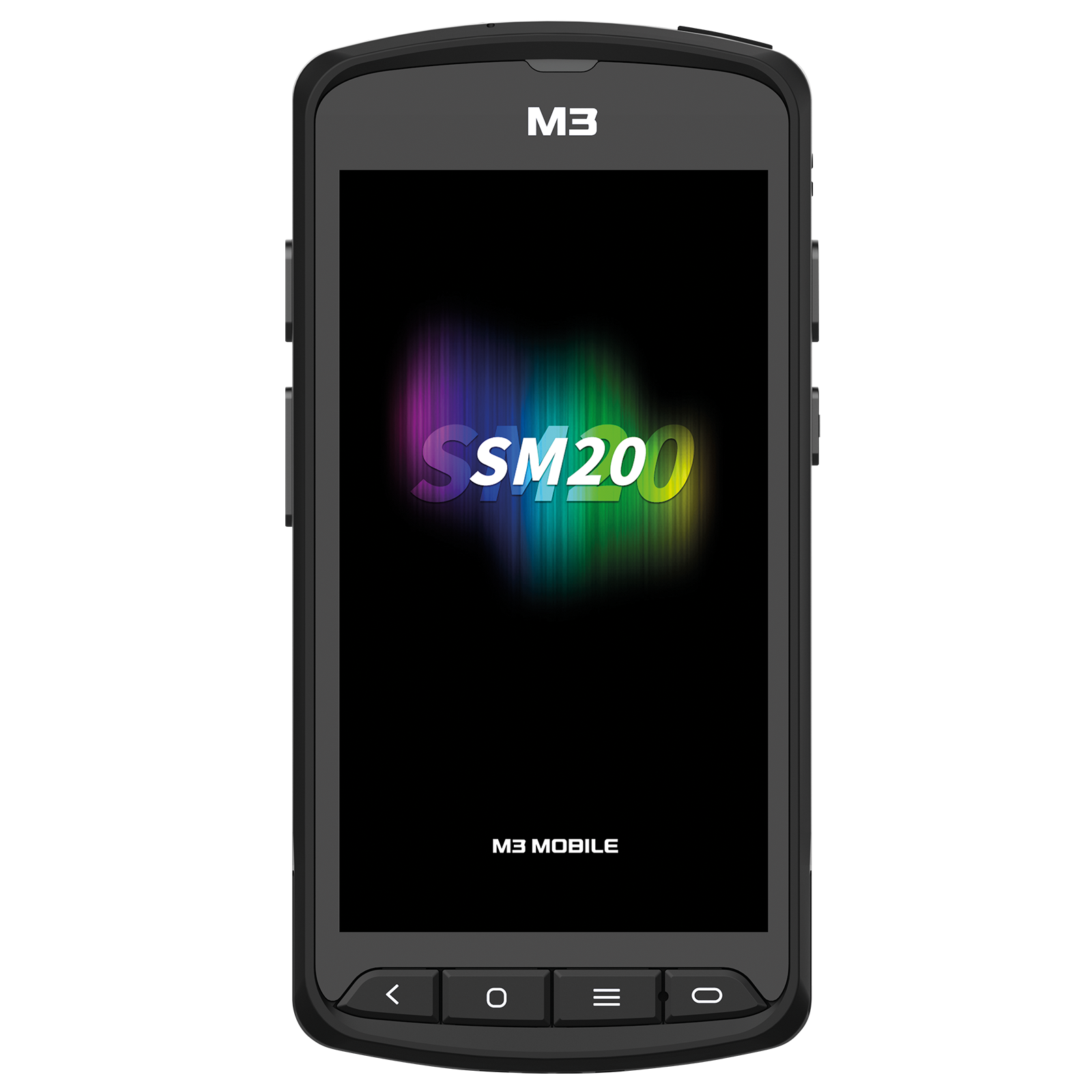

M3 Mobile SM20
Ultra-robust full-touch handheld computer
M3 Mobile SM20
Ultra-robust full-touch handheld computer
from

£1,189.68

(recommended retail price)
Log in to see prices
  • Mobile full-touch handheld computer with Android (support up to Android 13)
  • 5" HD colour display with Corning Gorilla Glass, 4,100 mAh hot-swap battery
  • Fast Wi-Fi 6 and Bluetooth 5.1 with BLE support
  • Qualcomm Snapdragon 662 octa-core processor with Adreno 610 GPU
  • Large selection of accessories for more productivity
818

Description

The SM20 from M3 Mobile is an ultra-robust, mobile full-touch handheld computer for use in retail and logistics. It is built upon the successful SM15 Series and is equipped with a user-friendly Android operating system which is supported through Android 13. It also features a high-end CPU design and a customer-specific 5" HD colour display and an intelligent 4,100 mAh hot-swap battery (standard) or an optional enhanced 6,150 mAh battery.
Additionally, the SM20 features a rear camera with 16 megapixels, the scan engines SE4710, SE4720 and optionally SE4750 MR, as well as a Qualcomm Snapdragon 662 octa-core processor with Adreno 610 GPU. Fast Wi-Fi 6 and Bluetooth 5.1 with BLE support increase the touch computer’s efficiency, flexibility and scalability. Plus, the SM20 may be transformed into a fully-fledged handheld computer with more than 20 accessories. The trigger with a large range allows users to read barcodes from distances up to 15 m, for example. The performance of the SM20 may be enhanced and managed with the M3 SPEEDPACK (M3 Application Package), depending on the need.
Variants
Marketplace disabled

Availability

All versions:
M3 Mobile SM20x, 2D, SE4710, USB, BT (5.1), Wi-Fi, 4G, NFC, GPS, disp., GMS, RB, black, Android
Topseller

(m3sm20x – SM2X4R-R2CHSS-HF)

portable data collection device, 2D, imager (SE4710), GPS, display (touch screen), speaker, Camera (16MP, auto-focus), front camera (5MP), vibration, 12.7 cm (5''), USB (2.0, Host), Bluetooth (class, class 5.1), Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 1280x720 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (11), IP65, software, Google Mobile Services, battery, 4100mAh, removable battery, protective foil, order separately: power supply unit, power cable, black

£1,189.68

£1,189.68

Topseller
In stock 1
12 months warranty
M3 Mobile SM20x, 2D, SF, USB, BT (5.1), Wi-Fi, 4G, NFC, GPS, disp., GMS, RB, black, Android
Topseller

(m3sm20sf – SM2X4R-RFCHSS-HF)

portable data collection device, 2D, imager (Smart Focus), GPS, display (touch screen), speaker, Camera (16MP, auto-focus), front camera (5MP), vibration, 12.7 cm (5''), USB (2.0, Host), Bluetooth (class, class 5.1), Wi-Fi (802.11ax), 4G (LTE), NFC, Micro SD-Slot, resolution: 1280x720 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (11), IP65, software, Google Mobile Services, battery, 4100mAh, removable battery, protective foil, order separately: power supply unit, power cable, black

£1,442.79

£1,442.79

Topseller
In stock 13
12 months warranty
M3 Mobile SM20X, 2D, SE4710, 12.7 cm (5''), GPS, disp., USB, BT (5.1), Wi-Fi, 4G, NFC, Android, GMS, RB, black

(m3sm20x-5 – SM2X4R-R2CHSE-HF)

portable data collection device, 2D, imager (SE4710), screen size: 12.7 cm (5''), resolution: 1280x720 pixels, GPS, display (touch screen), speaker, Camera (16MP, auto-focus), front camera (5MP), vibration, USB (2.0, Host), Bluetooth (class, class 5.1), Wi-Fi (802.11ax), 4G (LTE), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (11), Google Mobile Services, battery, 6150mAh, removable battery, protective foil, order separately: power supply unit, power cable, IP65, black

£1,201.83

£1,201.83

In stock 0
12 months warranty
M3 Mobile SM20X, 2D, SE4750, 12.7 cm (5''), GPS, disp., USB, BT (5.1), Wi-Fi, 4G, NFC, Android, GMS, RB, black

(m3sm20x-3 – SM2X4R-R3CHSE-HF)

portable data collection device, 2D, imager (SE4750), screen size: 12.7 cm (5''), resolution: 1280x720 pixels, GPS, display (touch screen), speaker, Camera (16MP, auto-focus), front camera (5MP), vibration, USB (2.0, Host), Bluetooth (class, class 5.1), Wi-Fi (802.11ax), 4G (LTE), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (11), Google Mobile Services, battery, 6150mAh, removable battery, protective foil, order separately: power supply unit, power cable, IP65, black

£1,275.83

£1,275.83

In stock 0
12 months warranty
M3 Mobile SM20X, 2D, SE4750, 12.7 cm (5''), GPS, disp., USB, BT (5.1), Wi-Fi, 4G, NFC, Android, GMS, RB, black

(m3sm20x-2 – SM2X4R-R3CHSS-HF)

portable data collection device, 2D, imager (SE4750), screen size: 12.7 cm (5''), resolution: 1280x720 pixels, GPS, display (touch screen), speaker, Camera (16MP, auto-focus), front camera (5MP), vibration, USB (2.0, Host), Bluetooth (class, class 5.1), Wi-Fi (802.11ax), 4G (LTE), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (11), Google Mobile Services, battery, 4100mAh, removable battery, protective foil, order separately: power supply unit, power cable, IP65, black

£1,263.68

£1,263.68

In stock 0
12 months warranty
M3 Mobile SM20, 2D, SF, 12.7 cm (5''), GPS, USB, BT (5.1), Wi-Fi, 4G, NFC, Android, GMS, RB, black

(m3sm20sf-1 – SM2X4R-RFCHSE-HF)

portable data collection device, 2D, imager (Smart Focus), screen size: 12.7 cm (5''), resolution: 1280x720 pixels, GPS, touch screen, speaker, Camera (16 MP, auto-focus), front camera (5 MP), vibration, connection: USB (2.0, Host), Bluetooth (class 5.1), Wi-Fi (802.11ax), 4G (LTE), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (11), incl.: Google Mobile Services, battery, 6150 mAh, removable battery, protective foil, order separately: power supply unit, power cable, IP65, black

£1,453.37

£1,453.37

In stock 0
12 months warranty
M3 Mobile SM20, 2D, SE4750, 12.7 cm (5''), GPS, USB, BT, Wi-Fi, 4G, NFC, Android, GMS, ext. bat., RB, black

(m3sm20x-4 – SM2X4R-S3CHSE-HF)

portable data collection device, 2D, imager (SE4750), screen size: 12.7 cm (5''), resolution: 1280x720 pixels, GPS, touch screen, speaker, Camera (16MP, auto-focus), front camera (5MP), vibration, USB (2.0), Bluetooth (class), Wi-Fi (802.11ax), 4G (LTE), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.0 GHz, RAM: 4 GB, Flash: 64 GB, Android (12), incl.: Google Mobile Services, battery, extended, 6150mAh, removable battery, protective foil, order separately: power supply unit, power cable, IP65, black

£1,275.83

£1,275.83

In stock 0
12 months warranty

Accessories

Available accessories:
Mobilis arm band, for smartphone and HHD (5-7 inch)

(mobwristm – 030004)

Arm band, for smartphone and HHD (5-7 inch), 180° rotating

£19.92

£19.92

In stock 74
24 months warranty
Mobilis REFUGE Holster HHD M

(mobrefm – 031002)

REFUGE Holster HHD M, 1680D polyester, incl.: basic belt, fits for: mobile terminals

£18.54

£18.54

In stock 293
24 months warranty
Mobilis REFUGE Holster HHD GUN S

(mobrefguns – 031010)

REFUGE Holster HHD GUN S, front pocket, incl.: basic belt, fits for: mobile terminals with gun

£19.92

£19.92

In stock 324
24 months warranty
Mobilis screen protector, IK06, SM15

(mobscrm3-2 – 036102)

Screen protector, Anti-Shock IK06, Clear, Easy set up (bubble free), fits for: SM15, SM20

£11.67

£11.67

In stock 8
24 months warranty
Mobilis Protective Case with Handstrap

(mob052051 – 052051)

Protective cover with hand strap, compatible with charging station and screen protector, for: SM15/10

£24.04

£24.04

In stock 85
24 months warranty
M3 Mobile charging/transmitter station, ethernet, HDMI

(m3sm10crdhd – SM10-2CRD-EC0-HD)

Charging/transmitter station, 1x SM10/SM15, 1x spare battery, ethernet, HDMI, order separately: power supply, fits for: SM10, SM15, SM20

£234.90

£234.90

In stock 0
12 months warranty
M3 Mobile, hand strap, pack of 10

(m3sm10strap – SM10-STRP-S10)

Hand strap, pack of 10, fits for: SM15, SM10, SM20

£67.40

£67.40

In stock 8
12 months warranty
M3 Mobile pistol grip

(m3sm10trig – SM10-TRIG-S00)

Pistol grip, fits for: SM10 LTE, SM15, SM20

£112.76

£112.76

In stock 21
No warranty
M3 Mobile charging station

(m3sm15cr2 – SM15-2CRD-C00)

Charging station, 1x SM15, 1x spare battery, compatible with pistol grip, fast charging, order separately: power supply, fits for: SM15, SM20

£78.16

£78.16

In stock 114
12 months warranty
M3 Mobile charging station, 4 slot

(m3sm15cr8 – SM15-8CRD-C00)

Charging station, 4x SM15, 4x spare battery, fast charging, order separately: power supply, fits for: SM15, SM20

£414.62

£414.62

In stock 30
12 months warranty
M3 Mobile power supply, EU

(m3sm15ps – SM15-PWSP-2EU)

Power supply, 5 VDC, 4 A, incl.: power cord, fits for: 2 slot charging/transmitter station, charging station, für SM15, SM20

£41.63

£41.63

In stock 161
6 months warranty
M3 Mobile power supply, UK

(m3sm15ps-uk – SM15-PWSP-2UK)

Power supply, 5 VDC, 4 A, incl.: power cord (UK), fits for: 2 slot charging/transmitter station, charging station, für SM15, SM20

£41.63

£41.63

In stock 2
No warranty
M3 Mobile snap-on (charge only), USB

(m3sm15snap2 – SM15-SNAP-C0U)

M3 Mobile snap-on (charge only), USB, order separately: power supply, fits for: SM15, SM20

£64.50

£64.50

In stock 0
No warranty
M3 Mobile Snap-on

(m3sm15usnap – SM15-SNAP-CUS)

Snap-on, USB, PSU plug, fits for: SM15, SM20

£56.57

£56.57

In stock 0
No warranty
M3 Mobile stylus

(m3sm15stylus – SM15-STYL)

Stylus, tether, fits for: SM15, SM20

£8.57

£8.57

In stock 20
No warranty
M3 Mobile pistol grip, LR

(m3sm15sgrip – SM15-TRIG-L00)

Pistol grip, equipped with long range scanner, fits for: SM15, SM20

£807.30

£807.30

In stock 15
12 months warranty
M3 Mobile vehicle charging station

(m3sm15vcrd – SM15-VCRD-C01)

Vehicle charging station, incl.: vehicle adapter, order separately: vehicle mount, fits for: SM10 (boot), SM15 (boot), SM20 (boot)

£158.01

£158.01

In stock 0
6 months warranty
M3 Mobile spare battery, extended

(m3sm20bat-1 – SM20-BATT-E61)

Spare battery, extended, 6150 mAh, fits for: SM20

£78.34

£78.34

In stock 34
12 months warranty
M3 Mobile spare battery

(m3sm20bat – SM20-BATT-S41)

Spare battery, 4100 mAh, fits for: SM15, SM20

£64.31

£64.31

In stock 13
12 months warranty
M3 Mobile protection case

(m3sm20boot – SM20-BOOT-01)

Protection case, incl.: hand strap, fits for: SM20

£19.54

£19.54

In stock 55
No warranty
M3 Mobile screen protector

(m3sm20prot – SM20-SCPR)

Screen protector, fits for: SM20

£7.82

£7.82

In stock 7
No warranty

Data sheet & more

Available downloads:
