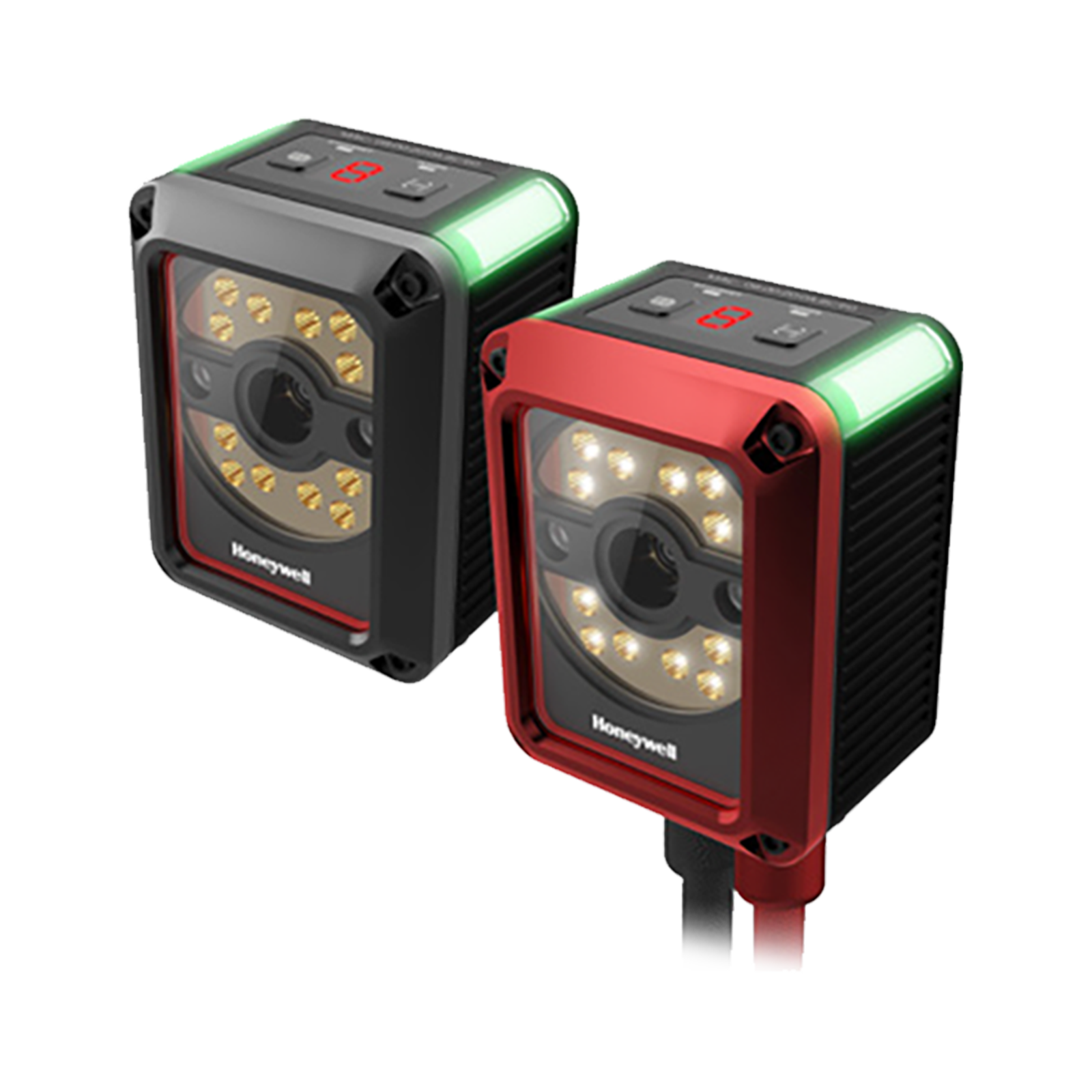

Honeywell HF810/HF811
Fixed mount industrial scanners with a DPM function
Honeywell HF810/HF811
Fixed mount industrial scanners with a DPM function
from
£1,297.67
(recommended retail price)- Fixed mount 2D industrial scanner with a compact footprint
- Dedicated DPM algorithm
- Also captures PDF, 1D and 2D (QR, DataMatrix, MaxiCode, Aztec)
- DataMax Plus configuration tool and auto-tune function
- Network-capable, I/O functionality for accessories like external triggers and additional lighting
643
Description
Description
Honeywell has designed its fixed mount 2D scanners HF810 and HF811 in such a way that they may be implemented in many various areas in industry. Among others, they are quickly and seamlessly integrated into package sorting and light manufacturing processes. Thanks to their dedicated DPM algorithm they ensure quick scanning in production processes. In addition to DPM, they also capture PDFs and 1D/2D barcodes – including QR, DataMatrix, MaxiCode and Aztec.
For comfortable handling throughout the workday, the HF810 and HF811 have a size of just 55 x 70 x 45 mm (L x W x H) and weigh only 180 grams. Plus, they are network-capable and are equipped with an I/O functionality for accessories such as an external trigger and additional lighting. Naturally, both scanners support Plug & Play: The DataMax Plus configuration tool allows quick set-up, while the auto-tune function optimises the scanning parameters at the push of a button.
Product Banner Large
All versions:
Honeywell HF810, 2D, Area Imager, DPM, RS232, Ethernet, black
(hwhf810nb – HF810-01BT00004K-R)
built-in scanner, industry, 2D, 0,5 MP, Area Imager, illumination: blue, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,297.67
£1,297.67
36 months warranty
Honeywell HF810, 2D, Area Imager, DPM, RS232, Ethernet, black
(hwhf810nr – HF810-01RT00004K-R)
built-in scanner, industry, 2D, 0,5 MP, Area Imager, illumination: red, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,297.67
£1,297.67
36 months warranty
Honeywell HF810, 2D, Area Imager, DPM, RS232, Ethernet, black
(hwhf810nw – HF810-01WT00004K-R)
built-in scanner, industry, 2D, 0,5 MP, Area Imager, illumination: white, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,297.67
£1,297.67
36 months warranty
Honeywell HF810 Wide Angle, 2D, WA, Area Imager, DPM, RS232, Ethernet, black
(hwhf810wb – HF810-11BT00004K-R)
built-in scanner, industry, 2D, 0,5 MP, wide angle, Area Imager, illumination: blue, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,297.67
£1,297.67
36 months warranty
Honeywell HF810 Wide Angle, 2D, WA, Area Imager, DPM, RS232, Ethernet, black
(hwhf810wr – HF810-11RT00004K-R)
built-in scanner, industry, 2D, 0,5 MP, wide angle, Area Imager, illumination: red, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,297.67
£1,297.67
36 months warranty
Honeywell HF810 Wide Angle, 2D, WA, Area Imager, DPM, RS232, Ethernet, black
(hwhf810ww – HF810-11WT00004K-R)
built-in scanner, industry, 2D, 0,5 MP, wide angle, Area Imager, illumination: white, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,297.67
£1,297.67
36 months warranty
Honeywell HF811, 2D, Area Imager, DPM, RS232, Ethernet, black
(hwhf811nb – HF811-01BT00004K-R)
built-in scanner, industry, 2D, 2 MP, Area Imager, illumination: blue, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,481.83
£1,481.83
36 months warranty
Honeywell HF811, 2D, Area Imager, DPM, RS232, Ethernet, black
(hwhf811nr – HF811-01RT00004K-R)
built-in scanner, industry, 2D, 2 MP, Area Imager, illumination: red, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,481.83
£1,481.83
36 months warranty
Honeywell HF811, 2D, Area Imager, DPM, RS232, Ethernet, black
(hwhf811nw – HF811-01WT00004K-R)
built-in scanner, industry, 2D, 2 MP, Area Imager, illumination: white, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,481.83
£1,481.83
36 months warranty
Honeywell HF811 Wide Angle, 2D, WA, Area Imager, DPM, RS232, Ethernet, black
(hwhf811wb – HF811-11BT00004K-R)
built-in scanner, industry, 2D, 2 MP, wide angle, Area Imager, illumination: blue, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,481.83
£1,481.83
36 months warranty
Honeywell HF811 Wide Angle, 2D, WA, Area Imager, DPM, RS232, Ethernet, black
(hwhf811wr – HF811-11RT00004K-R)
built-in scanner, industry, 2D, 2 MP, wide angle, Area Imager, illumination: red, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,481.83
£1,481.83
36 months warranty
Honeywell HF811 Wide Angle, 2D, WA, Area Imager, DPM, RS232, Ethernet, black
(hwhf811ww – HF811-11WT00004K-R)
built-in scanner, industry, 2D, 2 MP, wide angle, Area Imager, illumination: white, DPM, RS232, RS485, Ethernet, protection class: IP65, order separately: power supply unit, colour: black£1,481.83
£1,481.83
36 months warranty
Data sheet & more
Available downloads:
Datasheet
