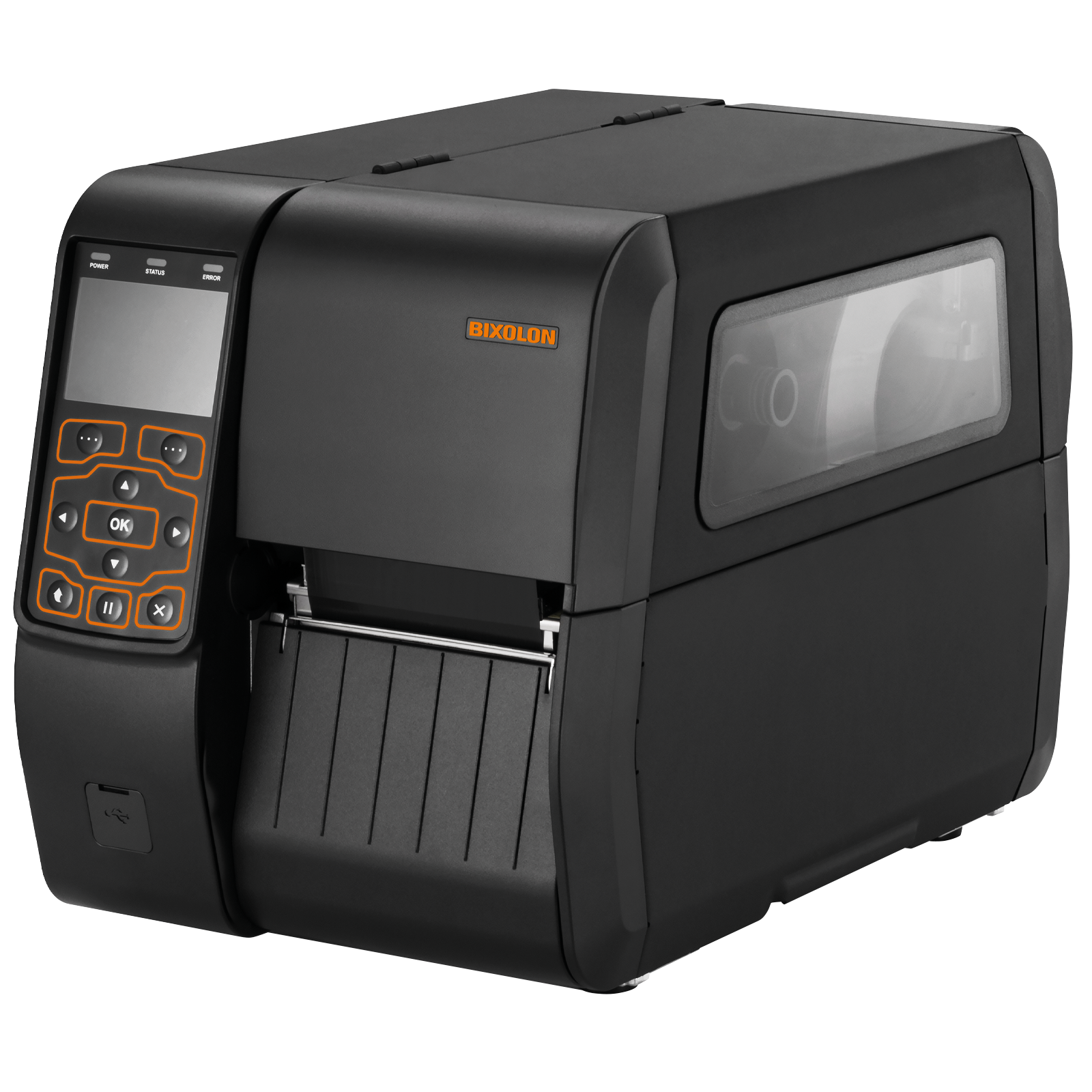

BIXOLON XT5-40 Series
Multi-functional high-performance label printers
BIXOLON XT5-40 Series
Multi-functional high-performance label printers
from

£1,354.18

(recommended retail price)
Log in to see prices
  • Industrial 4" thermal transfer high performance desktop label printers
  • Models: XT5-40, XT5-43 and XT5-46
  • Print speed up to 356 mm/sec. (XT5-40) at 600 dpi maximum (XT5-46)
  • Intuitive 3.5" full colour touch display
  • 512 MB SD-RAM and 512 MB flash, printer twin function (XT5-40)
74

Description

The industrial BIXOLON XT5-40 Series consists of high performance 4" thermal transfer desktop label printers with a maximum print speed of 356 mm/sec. (XT5-40) and a maximum print resolution of 600 dpi (XT5-46). The standard XT5-40 model impresses with a 3.5" full-colour touch display, various device management tools and a printer twin function for copying printer settings and data via USB memory.
The productivity-enhancing features of the XT5-40 Series include 512 MB SD-RAM and 512 MB flash, as well as an adjustable print head and an auto cutter, peeler, rewinder or rewinder and peeler. The interface is made up of various interface combinations with USB, serial, Ethernet, two USB host ports, parallel, Bluetooth and WLAN (including SoftAP function). Plus, the printers delight with their space-saving design with double folding door, a robust aluminum housing with special non-stick metal and an optional customised stand-alone functionality.
Variants

Availability

Filter

Resolution

Peeler

Rewinder

All versions:
Bixolon XT5-40, 8 dots/mm (203 dpi), peeler, rewind, disp. (colour), RTC, USB, USB Host, RS232, Ethernet, black

(bixxt540nd9s – XT5-40ND9S)

label printer, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, roll diameter (max.): 203mm, speed (max.): 356 mm/s, USB (type B), USB Host, RS232 (9 pin), Ethernet, RAM: 512 MB, Flash: 512 MB, peeler, rewinder, display (touch screen, colour), real time clock, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: black

£1,704.51

£1,704.51

In stock 0
24 months warranty
Bixolon XT5-40, 8 dots/mm (203 dpi), disp. (colour), RTC, USB, USB Host, RS232, Ethernet, black

(bixxt540ns – XT5-40NS)

label printer, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, roll diameter (max.): 203mm, speed (max.): 356 mm/s, USB (type B), USB Host, RS232 (9 pin), Ethernet, RAM: 512 MB, Flash: 512 MB, display (touch screen, colour), real time clock, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: black

£1,354.18

£1,354.18

In stock 5
24 months warranty
Bixolon XT5-43, 12 dots/mm (300 dpi), peeler, rewind, disp. (colour), RTC, USB, USB Host, RS232, Ethernet, black

(bixxt543nd9s – XT5-43ND9S)

label printer, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 106mm, roll diameter (max.): 203mm, speed (max.): 254 mm/s, USB (type B), USB Host, RS232 (9 pin), Ethernet, RAM: 512 MB, Flash: 512 MB, peeler, rewinder, display (touch screen, colour), real time clock, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: black

£1,967.67

£1,967.67

In stock 0
24 months warranty
Bixolon XT5-43, 12 dots/mm (300 dpi), disp. (colour), RTC, USB, USB Host, RS232, Ethernet, black

(bixxt543ns – XT5-43NS)

label printer, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 106mm, roll diameter (max.): 203mm, speed (max.): 254 mm/s, USB (type B), USB Host, RS232 (9 pin), Ethernet, RAM: 512 MB, Flash: 512 MB, display (touch screen, colour), real time clock, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: black

£1,617.34

£1,617.34

In stock 5
24 months warranty
Bixolon XT5-46, 24 dots/mm (600 dpi), peeler, rewind, disp. (colour), RTC, USB, USB Host, RS232, Ethernet, black

(bixxt546nd9s – XT5-46ND9S)

label printer, thermal transfer, resolution: 24 dots/mm (600 dpi), media width (max.): 114 mm, print width (max.): 106mm, roll diameter (max.): 203mm, speed (max.): 127 mm/s, USB (type B), USB Host, RS232 (9 pin), Ethernet, RAM: 512 MB, Flash: 512 MB, peeler, rewinder, display (touch screen, colour), real time clock, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: black

£2,456.85

£2,456.85

In stock 0
24 months warranty
Bixolon XT5-46, 24 dots/mm (600 dpi), disp. (colour), RTC, USB, USB Host, RS232, Ethernet, black

(bixxt546ns – XT5-46NS)

label printer, thermal transfer, resolution: 24 dots/mm (600 dpi), media width (max.): 114 mm, print width (max.): 106mm, roll diameter (max.): 203mm, speed (max.): 127 mm/s, USB (type B), USB Host, RS232 (9 pin), Ethernet, RAM: 512 MB, Flash: 512 MB, display (touch screen, colour), real time clock, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: black

£2,164.17

£2,164.17

In stock 0
24 months warranty

Accessories

Available accessories:
Bixolon spare print head, 8 dots/mm (203 dpi)

(bixspare – AE04-00043A-AS)

Bixolon spare print head, 8 dots/mm (203 dpi), fits for: XT5-40

£350.18

Special article: no cancellation or return possible!

£350.18

In stock 0
12 months warranty
Bixolon spare print head, 12 dots/mm (300 dpi)

(bixspare2 – AE04-00043B-AS)

Spare print head, 12 dots/mm (300 dpi), fits for: XT5-43

£408.54

Special article: no cancellation or return possible!

£408.54

In stock 0
12 months warranty
Bixolon spare print head, 24 dots/mm (600 dpi)

(bixspare3 – AE04-00043C-AS)

Spare print head, 24 dots/mm (600 dpi), fits for: XT5-46

£729.00

Special article: no cancellation or return possible!

£729.00

In stock 0
12 months warranty

Data sheet & more

Available downloads:
Offers and indicated delivery times are not binding and only valid for resellers. Prices are in GBP, exclusive of VAT and subject to change. Errors excepted.
